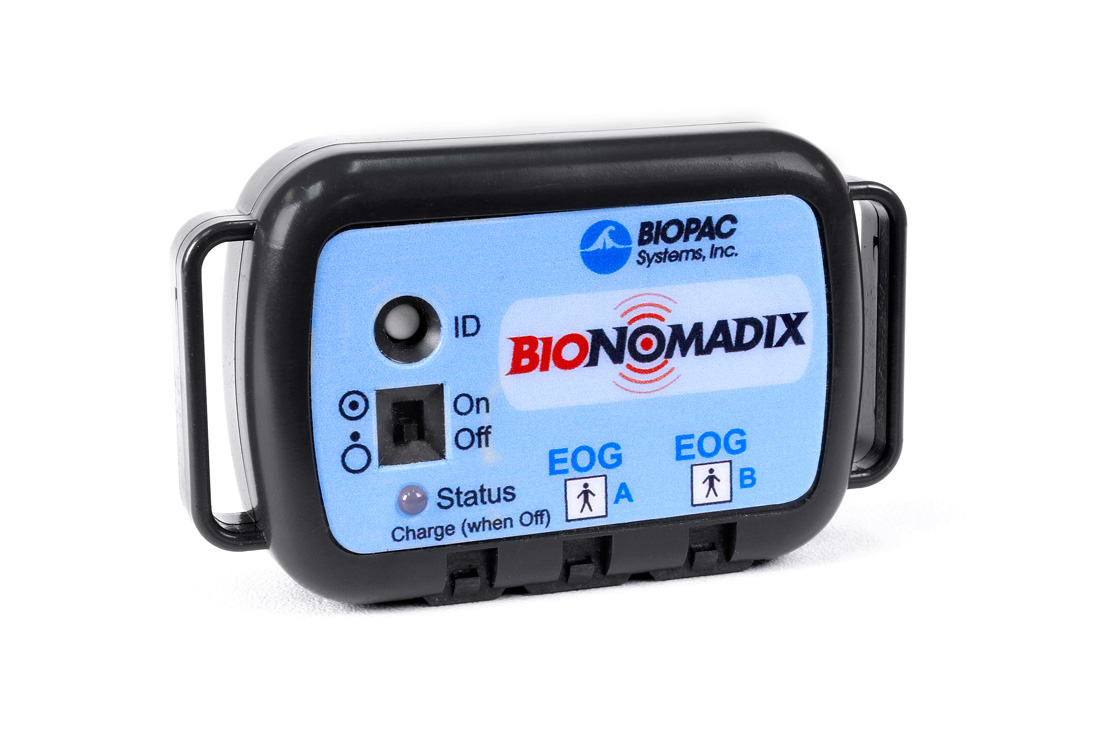

BioNomadix 2Ch Wireless EOG Amplifier

Description

The Dual Wireless EOG BioNomadix Pair consists of a matched transmitter and receiver module. EOG signal data is transmitted at a rate of 2,000 Hz, providing an extremely high resolution EOG waveform at the receiver’s output. Raw data from the pair is bandlimited from .005 Hz to 100 Hz, to provide a very high quality recording. The matched pair incorporates internal highpass and lowpass filters to provide for high quality amplification of the EOG waveform, which results from the corneal-retinal electrical potential. The pair is used to amplify the potentials appearing on the skin surfaces, surrounding the eyes, which are proportional to degree of eye movement and travel. The high signal to noise ratio and high time-based sampling resolution permit the pair to be used for precise oculomotor research/visual attention and visual evoked response studies.

The matched pair is specifically designed to measure two channels of Electrooculogram (EOG) data and emulates a “wired” connection from the computer to subject, with all the benefits of a fully-wireless recording system.

Interfaces with the MP200 (or older MP160/MP150) data acquisition and analysis platform and AcqKnowledge software, allowing advanced analysis for multiple applications and supporting acquisition of a broad range of signals and measurements.
