BioNomadix 2CH Wireless Goniometry Amplifier

Description

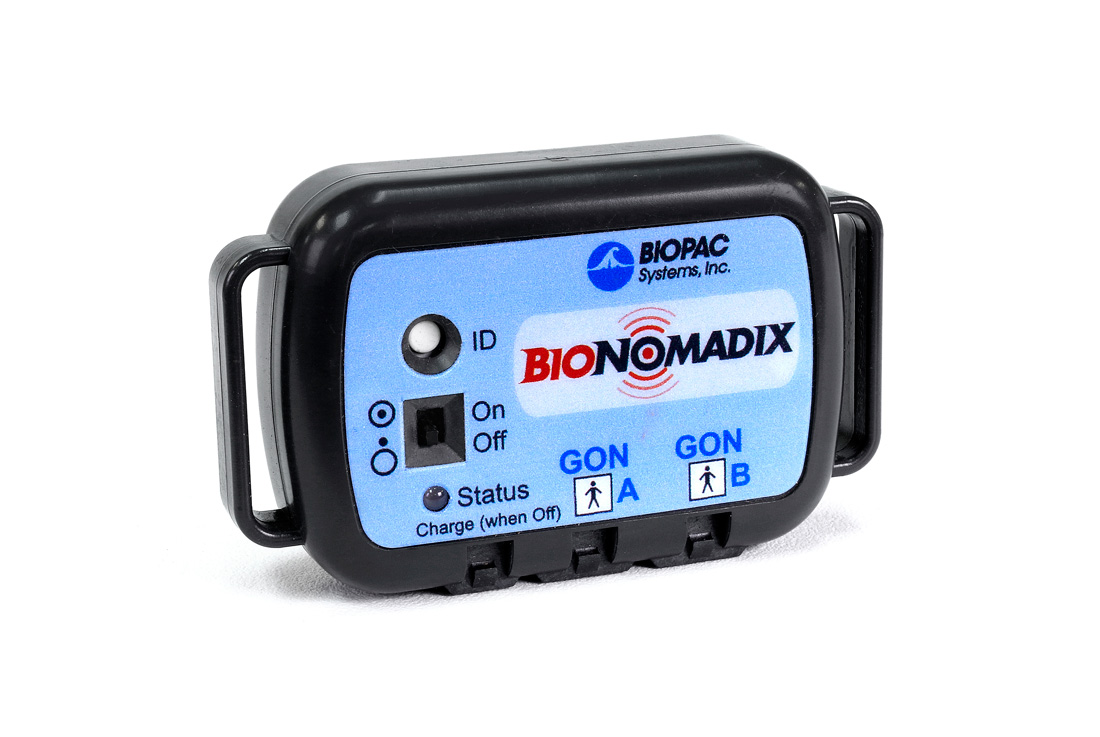

The BioNomadix two channel wireless goniometry amplifier is a dual output device that provide simultaneous measurements around two orthogonal rotational axes (e.g., wrist flexion/extension and radial/ulnar deviations). These units interface with the MP200 (or older MP160/MP150) data acquisition and analysis platform and AcqKnowledge software, allowing advanced analysis for multiple applications and supporting acquisition of a broad range of signals and measurements.

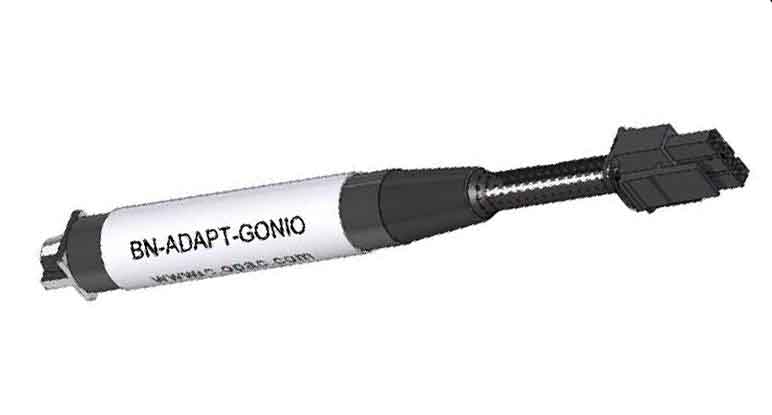

BN-GONIO can support any combination of two outputs—one twin-axis goniometer, two single-axis goniometers, a finger goniometer and an open output, two torsiometers, etc. Each axis requires one output and one BN-ADAPT-GON adapter; adapters are included with BioNomadix goniometers/torisometers or can be purchased separately for existing BIOPAC or 3rd-party goniometers/torsiometers.

• Goniometers BN-GON-110-XDCR and BN-GON-150-XDCR are twin-axis transducers used to measure limb angular movement.
• Torsiometers BN-TOR-110-XDCR and BN-TOR-150-XDCR are single-axis transducers used to measure axial rotation (e.g., forearm pronation/supination).
• Finger Goniometer BN-GON-F-XDCR is a single-axis transducer used to measure flexion/extension of a finger or toe joint.
