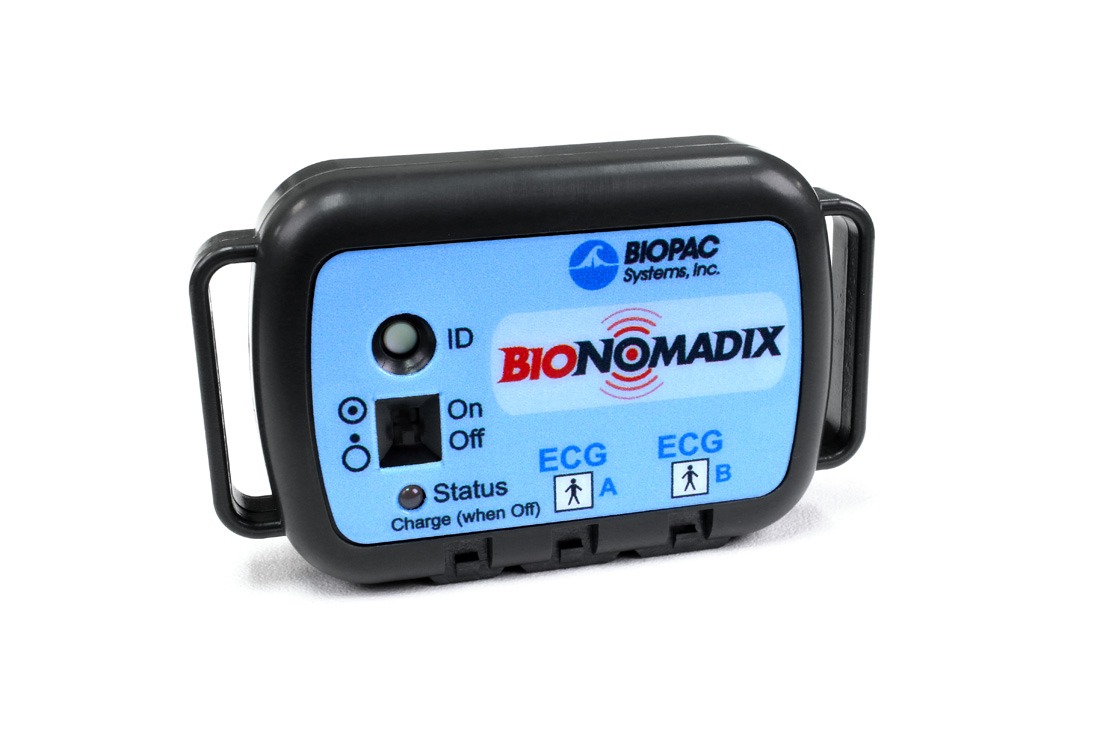

BioNomadix 2Ch Wireless ECG Transmitter

ECG signal data is transmitted at a rate of 2,000 Hz, providing an extremely high resolution ECG waveform at the receiver’s output. Raw data from the pair is bandlimited from 0.05 Hz to 150 Hz, to provide a very high quality recording. The matched pair incorporates internal, non-distorting, highpass and lowpass filters to provide for high quality amplification of the complete ECG waveform and associated complexes. The high signal to noise ratio and high time-based sampling resolution permit the pair to be used for exacting heart rate variability studies.

The transmitter can be used with the Logger or with a matched Receiver to emulate a “wired” connection from subject to computer, with all the benefits of a fully-wireless recording system.
