BioNomadix 2Ch Wireless EEG Amplifier
$2,100.00
Description

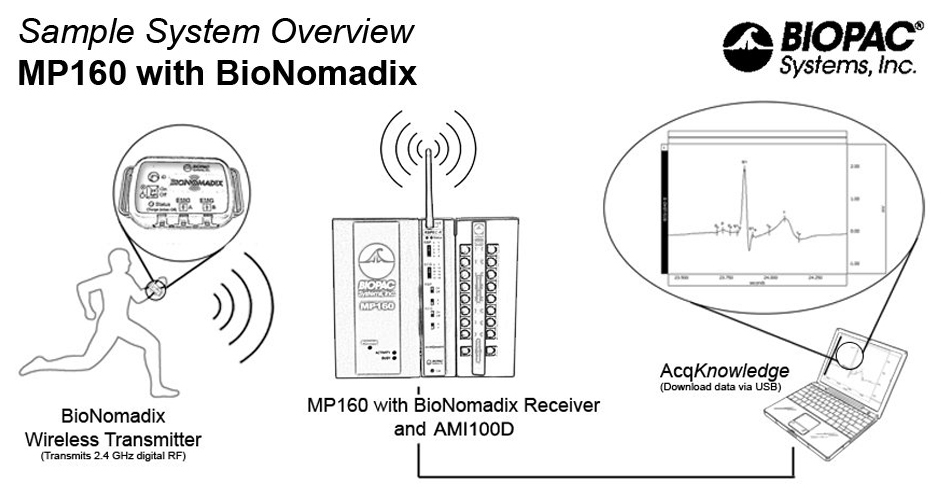

The Dual Wireless EEG BioNomadix Pair consists of a matched transmitter and receiver module. The matched pair is specifically designed to measure two channels of Electroencephalogram (EEG) data and emulates a âwiredâ connection from the computer to subject, with all the benefits of a fully-wireless recording system. These units interface with the the MP200 (or older MP160/MP150) data acquisition and analysis platform and AcqKnowledge software, allowing advanced analysis for multiple applications and supporting acquisition of a broad range of signals and measurements.
EEG signal data is transmitted at a rate of 2,000 Hz, providing an extremely high resolution EEG waveform at the receiverâs output. Raw data from the pair is bandlimited from 0.1 Hz to 100 Hz, to provide a very high quality recording. The matched pair incorporates internal highpass and lowpass filters to provide for high quality amplification of the EEG waveform with its associated discharges, spindles and other synchronous neuronal activity. The high signal to noise ratio and high time-based sampling resolution permit the pair to be used for exacting episodic counting studies or event-related potentials, such as P300.
Additional information
| Weight | 2.0000 lbs |
|---|---|
| Dimensions | 1 × 1 × 1 in |
