Name: Camera System - High Frame Rate
SKU: CAM-HFR-A
Availability: InStock

Description

Tightly synchronize high frame rate video—up to 100 FPS—with physiological data recorded with a BIOPAC Research System

Use the High Frame Rate Camera System to capture precise movement activity as a series of video frames (640×480 resolution) in conjunction with other recorded physiological variables.

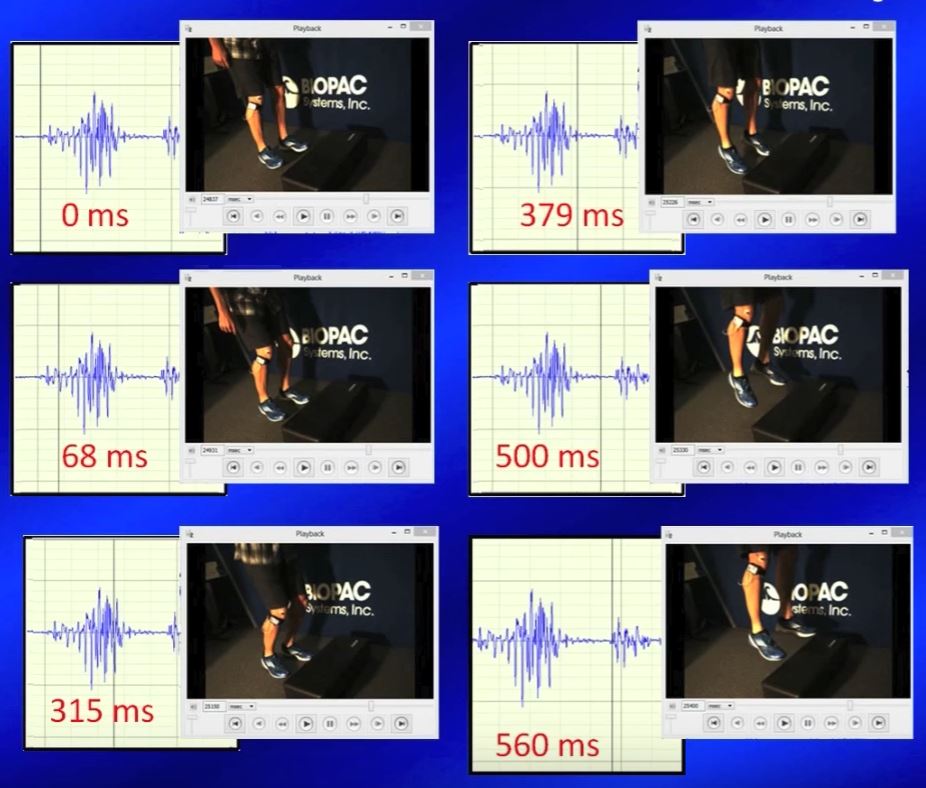

With CAM-HFR-A and AcqKnowledge media tools, it’s possible to obtain synchronization within 1 video frame (10 ms) between physiological data and video data, running at a rate of 100 frames per second, up to the computer’s memory capacity. This very high performance video recording option incorporates automatic synchronizing between the video data and the physiological data, so no external synchronization marker is required. Furthermore, the high speed camera in CAM-HFR-A can be controlled from AcqKnowledge for exposure times as short as 1 ms, running at 100 frames per second. This combination of high frame rate, automatic synchronization, and precise control over camera exposure times results in the ability to precisely characterize physical activity in relation to simultaneously recorded physiological data, such as EMG, Acceleration, Goniometry, Respiration, and more.

Additional information

Weight	5.0000 lbs
Dimensions	1 × 1 × 1 in
