Electrical Stimulation System

Description

This package includes everything required to deliver constant current and constant voltage electrical stimulation with an existing MP200 System with AcqKnowledge for a variety of applications, including: muscle stimulation, nerve stimulation (e.g., H-reflex), shock and pain paradigms, transcranial direct current (tDCS) and transcranial alternating current stimulation (tACS).

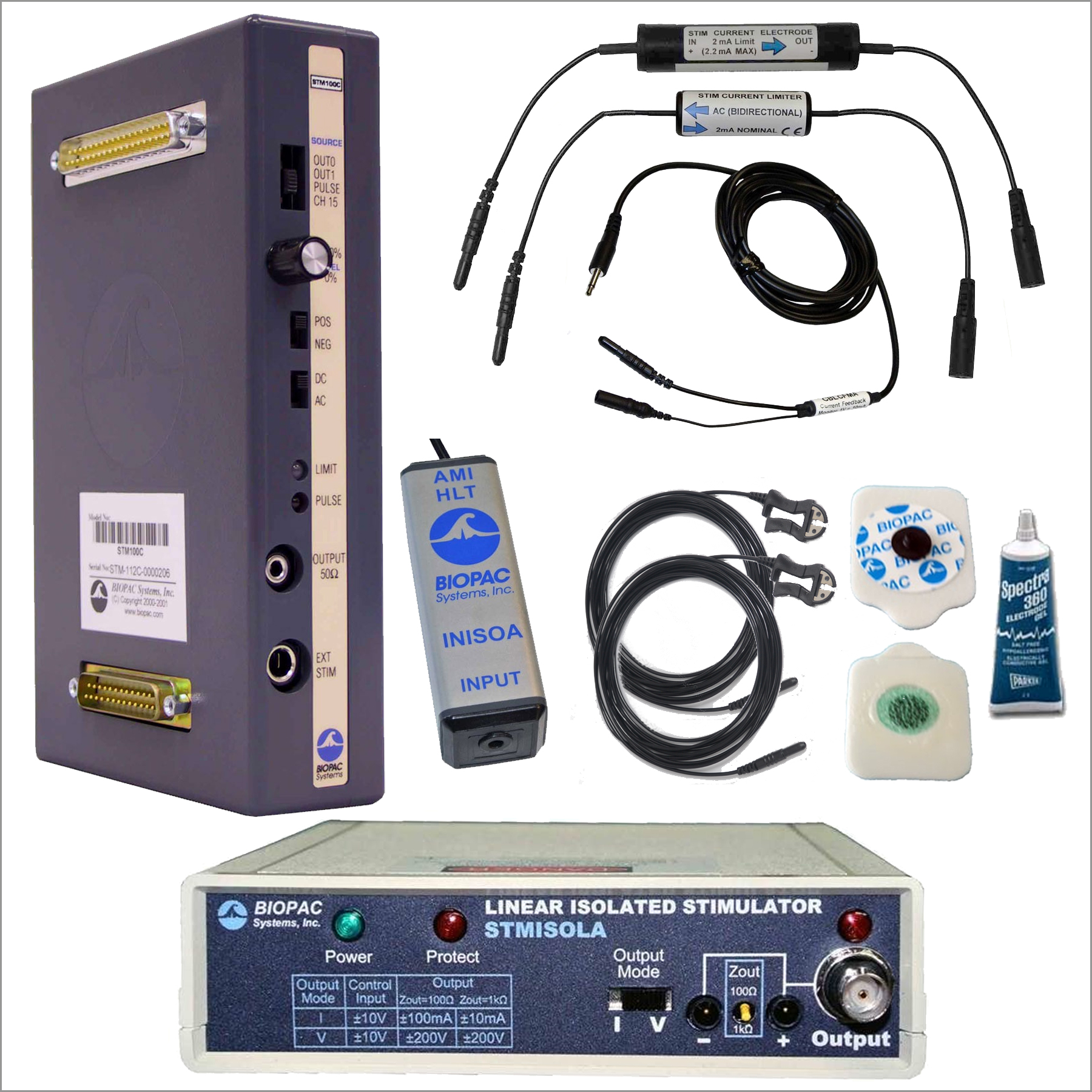

The Electrical Stimulation System includes:

STM100C Stimulator Module
STMISOLA Isolated Linear Stimulator
– includes CBL122 (2), CBL100, and CBL212
– includes Power Supply AC300A-1 & cord for USA, Euro, UK or China
INISOA Input Isolation Signal Adapter
CBLLIMIT2 Current Limiter: 2 ma (3 ma max)
CBLLIMIT2AC Current Limiter AC (2 ma – 3 ma)
CBLCFMA Current Feedback Monitor Cable
LEAD110A Touchproof Unshielded Pinch Lead, Black 3 m (2)
EL509 Disposable RT Dry Electrode (pack of 100)
GEL104 Salt-free gel for electrical stimulation

The Stimulator setup in AcqKnowledge provides easy-to-modify single-, double- or multiple-pulse sequence outputs of any polarity. The Stimulator setup screen also provides standard sine, triangular and square wave outputs for other kinds of physiological tests. Create an arbitrary waveform by modifying an existing wave or reading in a sequence of user-specified numbers (text file).
