fNIRS Mobile Imaging Systems

Description

High-performance mobile fNIR Imaging Systems are stand-alone functional brain imaging solutions for continuous NIR spectroscopy (NIRS). These top of the line systems provide cognitive function assessment and eliminate a great many of the drawbacks of a functional MRI. Mobile subjects are comfortable and can respond naturally in real-world situations to take a test or perform mobile tasks.

fNIR2000M Series

Max Sources: 4
Max Detectors: 12
Max Sampling Frequency: 4 Hz
Wireless: Yes
Battery: record for ≈1 hour after a full charge; allow ≈3 hours to fully charge from empty
Synchronization ports: 1 TTL
Dimensions: 96 mm x 32 mm x 85 mm

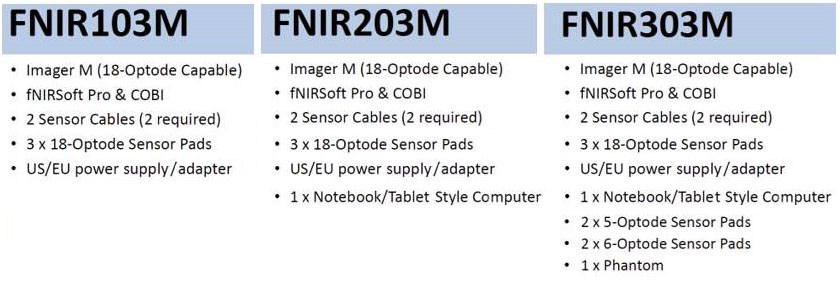

fNIR2000M System Components

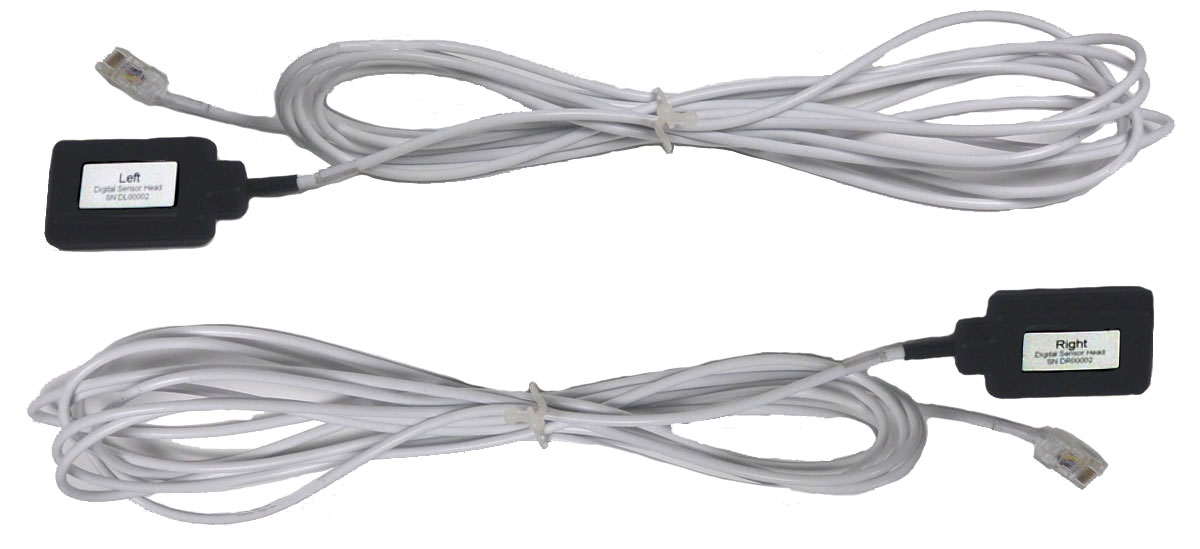

• Mobile Imaging – fNIR103M : Imager 2000M (18-Optode Capable), fNIRSoft Pro & COBI, 2 Sensor Cables (2 required), 3 x 18-Optode Sensor Pads, US/EU power supply/adapter
• Mobile Data Collection – fNIR203M: all fNIR103M components PLUS 1 x Notebook/Tablet Style Computer
• Mobile Data Collection + Sensors – fNIR303M: all fNIR203M components PLUS additional sensors: 2 x 5-Optode Sensor Pads and 2 x 6-Optode Sensor Pads
