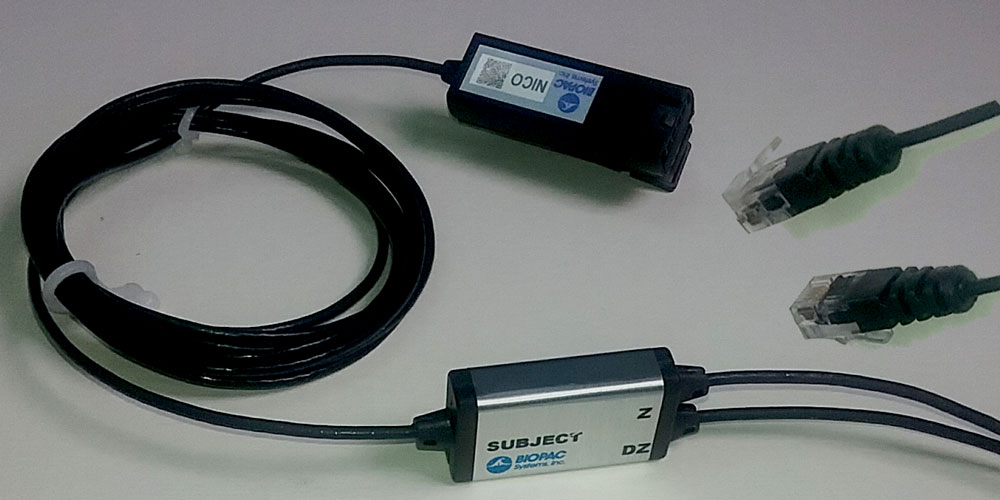

NICO Smart Amplifier

Description

The NICO Smart Amplifier is specifically designed to measure thoracic impedance for performing noninvasive cardiac output measurements. The amplifier terminates in two connectors for impedance (Z) and its derivative (dZ), and has a 3 m cable that connects directly to an AMI100D Amplifier Input Module. Use with EL526 strip electrodes and CBL246 adapter or with EL500 series disposable electrodes and LEAD131 for a four-spot electrode configuration or LEAD132 for an eight-spot electrode configuration; contact BIOPAC for use with ICG tape.

Webinar TREV | A New Bioimpedance Technique: Indexing Dynamic Activity of the SNS

BIOPAC’s new Smart Amplifiers are designed for great data. Smart Amplifiers improve performance by amplifying the physiological signal close to the subject, which allows a high-level voltage connection to the data acquisition system and reduces noise artifact.

AcqKnowledge Smart Amp setup includes guides and prompts to prevent errors. Plus, channels are automatically set to be plotted and included in input values display, with the initial visual range set to the min/max input range for that Smart Amplifier signal type, in appropriate units.

The Smart Amplifier may be attached to the subject either using the included self-adhering clip or optional self-adhering straps around the subject.
