Noninvasive Blood Pressure Amplifier

Description

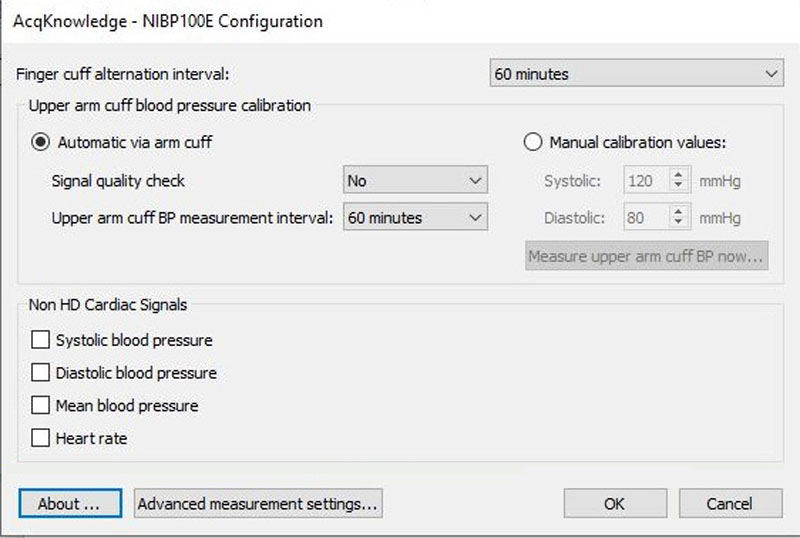

The NIBP100E noninvasive blood pressure system provides continuous, beat‐to‐beat, blood pressure signal and values (Sys, Dia, MAP) and Pulse Rate (PR); see the NIBP100E-HD if you also require hemodynamic parameters CO, CI, SV,SI, SVR, and SVRI. The system outputs a continuous blood pressure waveform that is similar to a direct arterial pressure waveform. The amplifier provides values for systolic, diastolic, mean blood pressure, and heart rate. The NIBP100E amplifier with CNAP™ technology is controlled by AcqKnowledge (v5.0.7) Research Software and connects to MP200, MP160, and MP150 data acquisition modules.

The system provides:

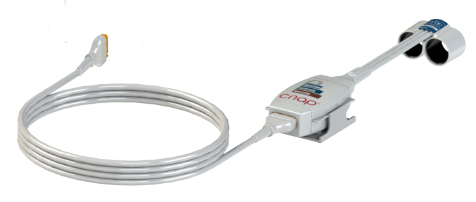

• All values from one double-finger sensor that is comfortable to wear (available in three sizes for use in children through large adults)
• Easy set‐up for a fast start‐up and immediate feedback and recording

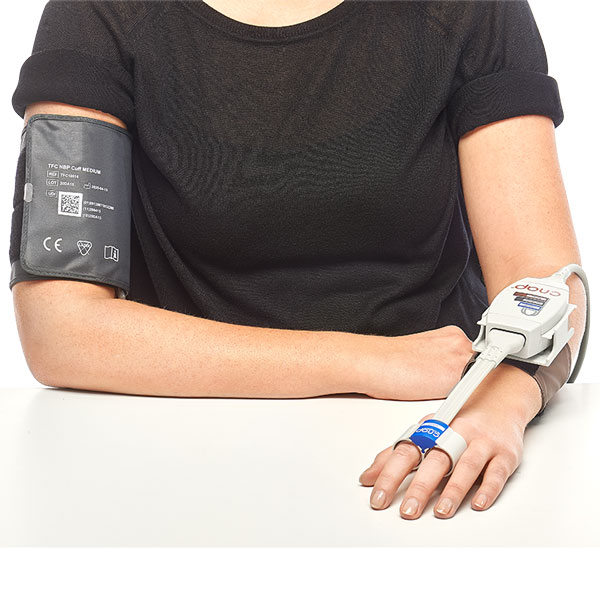

• Automatic calibration to heart level with standard upper arm cuff
• Validated CNAP technology

The NIBP100E noninvasive blood pressure system is part of a complete research system, allowing advanced research for multiple applications and supporting acquisition of a broad range of signals and measurements.

The NIBP100E requires Windows OS.
