Noninvasive Blood Pressure Module

Description

The NIBP100D noninvasive blood pressure system provides continuous, beat‐to‐beat, blood pressure signal and values (Sys, Dia, MAP) and Pulse Rate (PR)*. The system outputs a continuous blood pressure waveform that is similar to a direct arterial pressure waveform. The monitor displays values for systolic, diastolic, mean blood pressure, and heart rate. The system provides:

• All values from one double-finger sensor that is comfortable to wear (available in three sizes for use in children through large adults)
• Easy set‐up for a fast start‐up and immediate feedback and recording
• Automatic calibration to heart level with standard upper arm cuff
• Validated technology
• Module display language options: EN, DE, FR, ES, IT

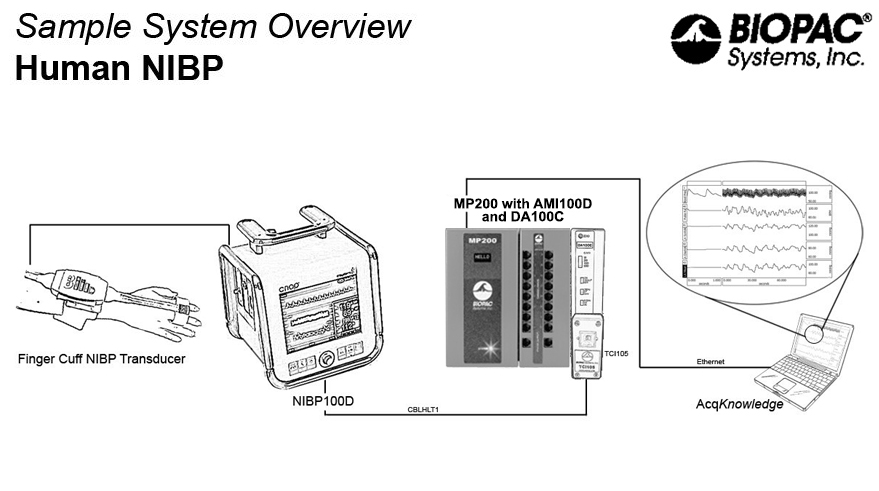

The NIBP100D noninvasive blood pressure system is part of a complete research system, interfacing with the MP200/MP160 and MP36R data acquisition and analysis platforms and AcqKnowledge software, allowing advanced research for multiple applications and supporting acquisition of a broad range of signals and measurements.

Interface extension cable included (CBLHLT1 ): Use with DA100C Amp + TCI105 Connector to MP200 or MP160,  or with BSL-TCI5 Connector to MP36R.

See Best Practices for NIBP for setup tips!

*To add hemodynamic parameters PPV, SVV, CO, CI, SV,SI, SVR, and SVRI, see NIBP100D-HD.
