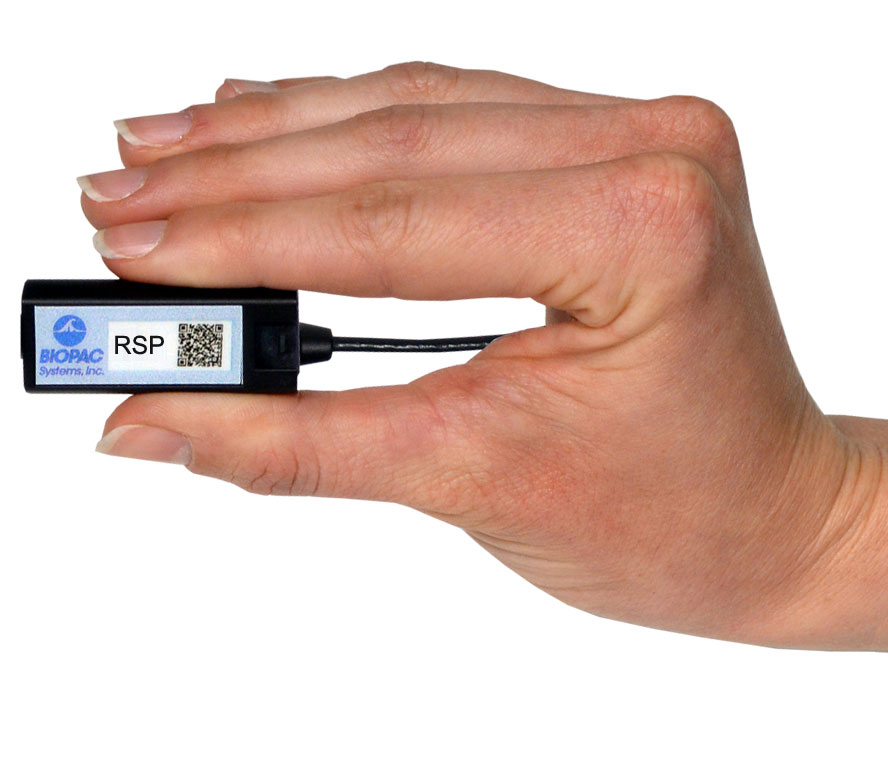

RSP Smart Amplifier

Description

The RSP Respiration Smart Amplifier is specifically designed for recording signals from a respiration transducer for direct physical measurement of respiratory effort. The amp works with the transducer to measure abdominal or thoracic expansion and contraction while breathing and permits DC coupling for the recording of respiratory effort signals of arbitrarily low frequency.

BIOPAC’s new Smart Amplifiers are designed for great data. Smart Amplifiers improve performance by amplifying the physiological signal close to the subject, which allows a high-level voltage connection to the data acquisition system and reduces noise artifact.

AcqKnowledge Smart Amp setup includes guides and prompts to prevent errors. Plus, channels are automatically set to be plotted and included in input values display, with the initial visual range set to the min/max input range for that Smart Amplifier signal type, in appropriate units.

Connect to the BN-RESP-XDCR transducer from the proven BN Series of accessories.

The Smart Amplifier may be attached to the subject either using the included Velcro backed clip or optional Velcro straps around the subject. The amplifier terminates with a 3 m long cable and connects to the AMI100D Amplifier Input Module.
