SpO2 Human Oximetry Transducers

Description

The TSD124 series human oximetry transducers are reliable and simple to use on a wide range of subjects for both short-term and continuous noninvasive monitoring.

Sp0₂ transducer options:

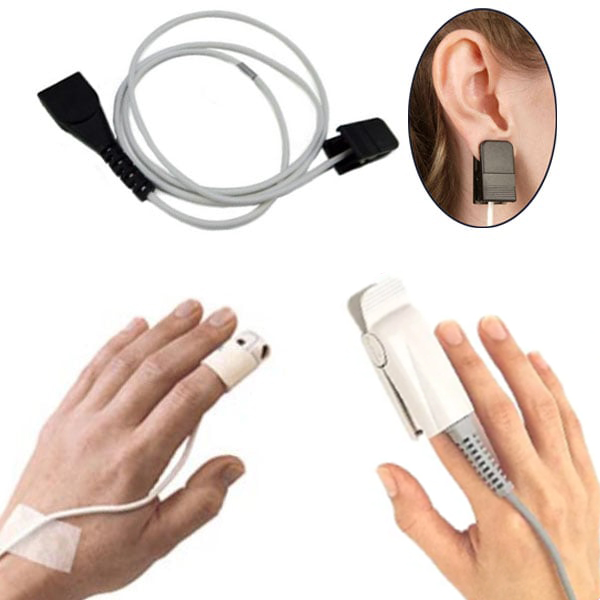

• TSD124B Ear Clip – incorporates Nonin’s PureLight® sensors and are backed by a six-month warranty.
• TSD124C Flex Wrap – incorporates Nonin’s PureLight® sensors and are backed by a six-month warranty.
• TSD124D Finger Clip – The sensor is transmissive and suitable for adults >30 Kg (66 lbs). Length 1 m. Use with CBLOXY-EXT Extension cable to increase distance between subject and amplifier.

Use with the OXY100E oximetry amplifier or the OXYSSH-SYS Human Oximetry System (note: OXYSSH-SYS includes one TSD124D); the TSD124D finger sensor can also work with the PPG100C amp, as an alternative to the TSD200 transducer, but a TCIPPG3 must be used.

Also available: extension cable CBLOXY-EXT
